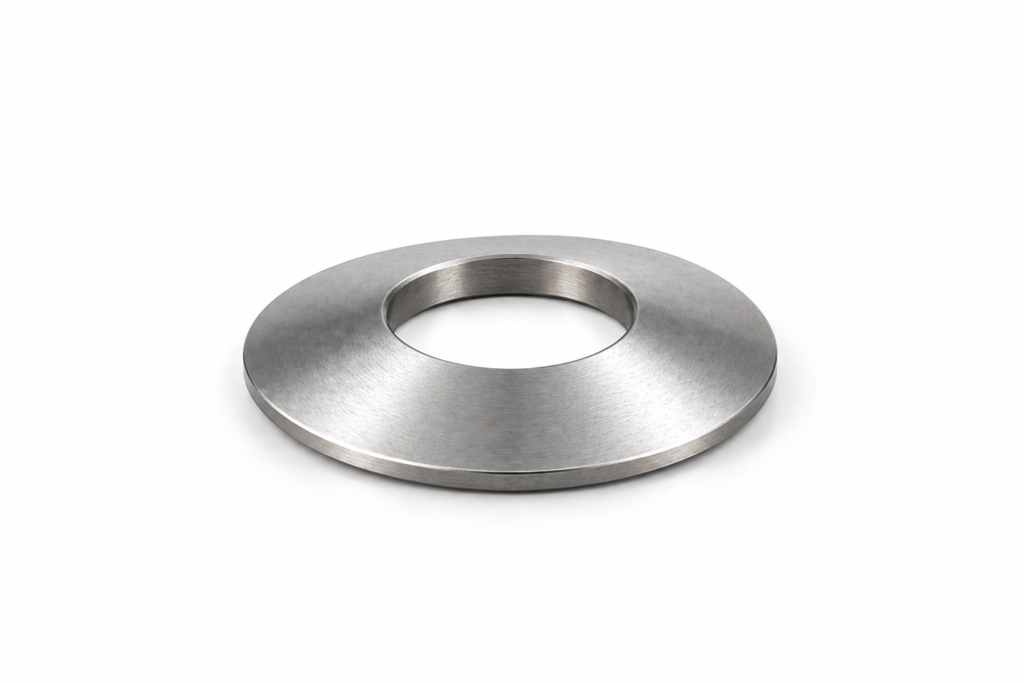

Titanium Belleville washers are conical spring washers designed to provide axial spring force and maintain preload in bolted assemblies. Available in different sizes, thicknesses and custom dimensions based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Size — Metric / Custom
Supply — Standard & Custom
Titanium Belleville washers are conical spring washers designed to provide axial spring force and help maintain preload in bolted assemblies. TitaniumWest supplies titanium Belleville washers in different grades, sizes, thicknesses and custom dimensions.
Standard and custom titanium Belleville washers can be supplied according to applicable ISO, EN and DIN specifications and customer requirements, while non-standard parts can be manufactured according to customer drawings, samples and technical requirements.

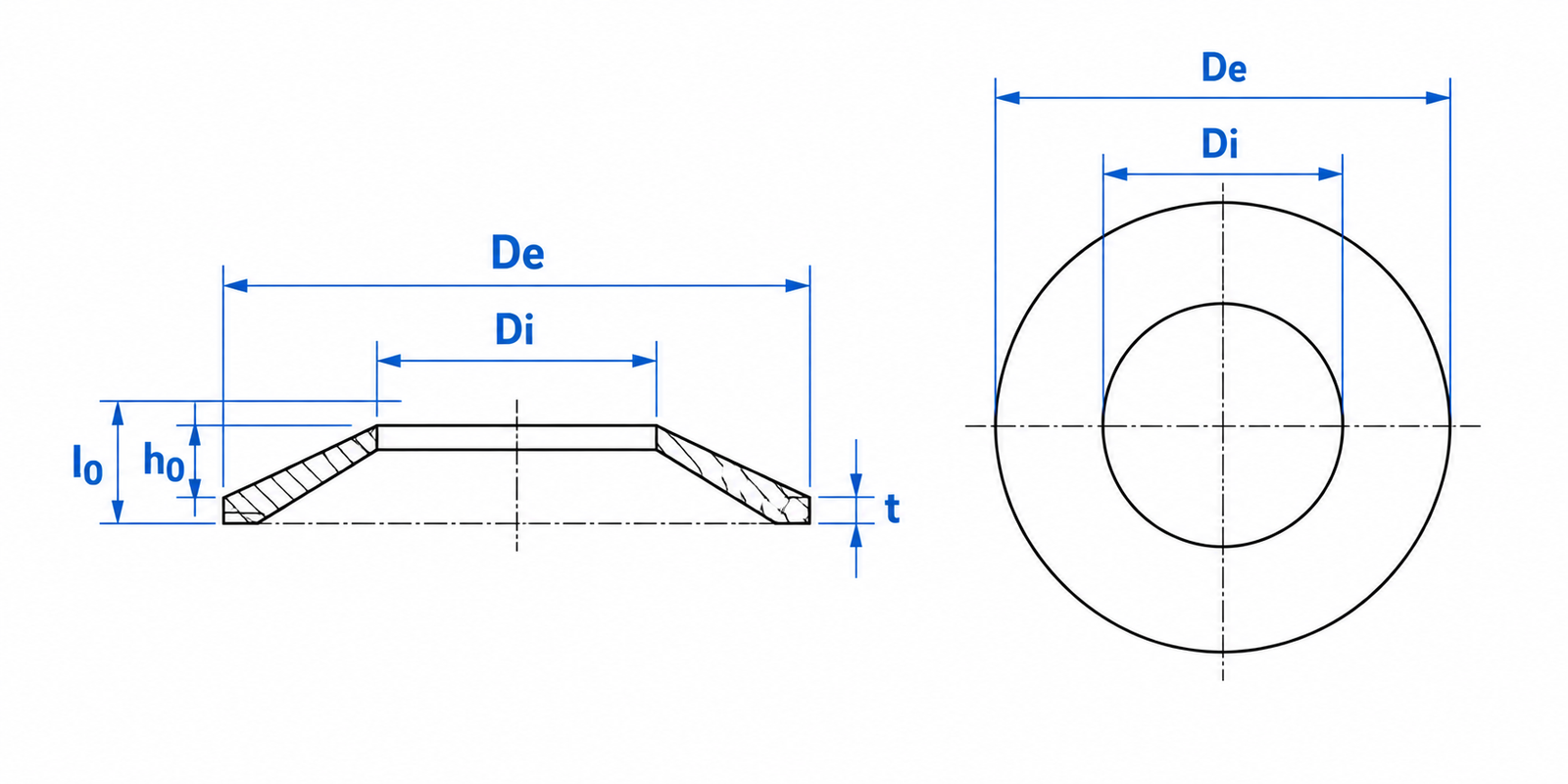

De — Outside Diameter · Di — Inside Diameter · t — Material Thickness · h₀ — Cone Height · l₀ — Free Height
| De (mm) | Di (mm) | t (mm) | h₀ (mm) | l₀ (mm) |
|---|---|---|---|---|
| 8 | 4.2 | 0.30 | 0.25 | 0.55 |
| 10 | 5.2 | 0.40 | 0.30 | 0.70 |
| 12.5 | 6.2 | 0.50 | 0.35 | 0.85 |
| 14 | 7.2 | 0.50 | 0.40 | 0.90 |
| 16 | 8.2 | 0.60 | 0.45 | 1.05 |
| 18 | 9.2 | 0.70 | 0.50 | 1.20 |
| 20 | 10.2 | 0.80 | 0.55 | 1.35 |
| 22.5 | 11.2 | 0.80 | 0.65 | 1.45 |
| 25 | 12.2 | 0.90 | 0.70 | 1.60 |
| 28 | 14.2 | 1.00 | 0.80 | 1.80 |
| 31.5 | 16.3 | 1.25 | 0.90 | 2.15 |
| 35.5 | 18.3 | 1.25 | 1.00 | 2.25 |
| 40 | 20.4 | 1.50 | 1.15 | 2.65 |
| 45 | 22.4 | 1.75 | 1.30 | 3.05 |
| 50 | 25.4 | 2.00 | 1.40 | 3.40 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric
Custom Dimensions
ISO 19690-2:2018 — Disc Springs, Technical Specifications
DIN EN 16983:2017-09 — Disc Springs, Quality Specifications and Dimensions
Non-standard diameters, thicknesses, free heights and custom dimensions can be manufactured according to your requirements.
Outside diameter, inside diameter and other dimensions can be manufactured according to your requirements.
Different metric sizes and non-standard dimensions can be supplied according to your application requirements.
Standard and non-standard material thicknesses can be supplied according to your dimensional requirements.
Free height and cone height can be customized according to drawings and dimensional requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium Belleville washers can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
