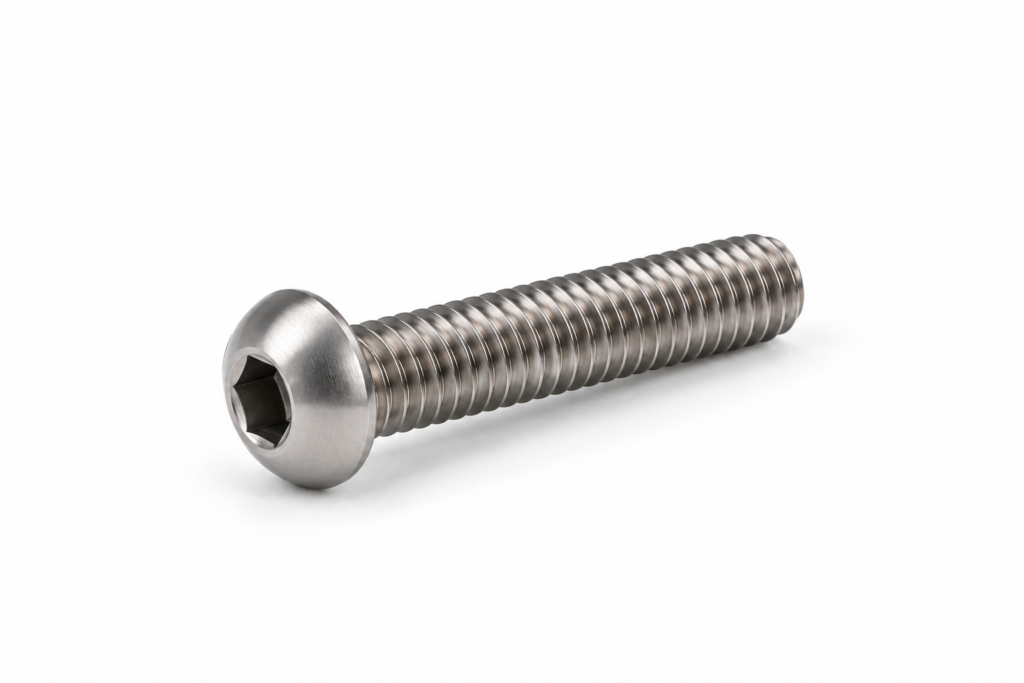

Titanium button head screws feature a low-profile rounded head with an internal hex drive, providing a compact fastening solution with a smooth finished appearance. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium button head screws are widely used where a low-profile head, compact installation and a smooth finished appearance are required. The rounded button head provides a lower profile than standard socket head cap screws, while the internal hex drive allows convenient installation in confined or visually exposed applications. TitaniumWest supplies standard and custom titanium button head screws in different grades, thread configurations and dimensions.
Standard products can be supplied according to applicable ISO and other relevant specifications, while non-standard titanium button head screws can be manufactured according to customer drawings, samples and technical requirements.

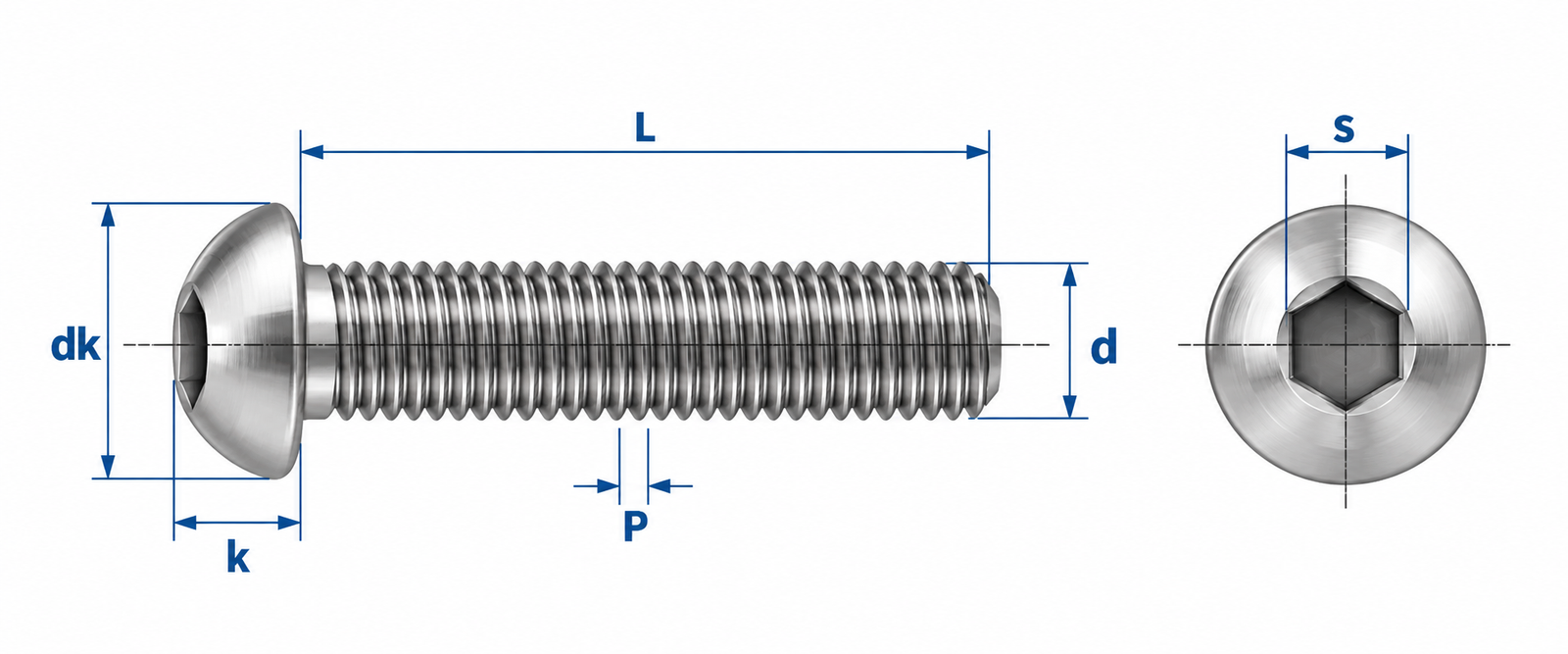

d — Nominal Thread Diameter · P — Thread Pitch · dk — Head Diameter · k — Head Height · s — Hex Socket Size · L — Screw Length
| Size (d) | Pitch P (mm) | Head Diameter dk max (mm) | Head Height k max (mm) | Hex Socket s (mm) |
|---|---|---|---|---|
| M3 | 0.5 | 5.7 | 1.65 | 2.0 |
| M4 | 0.7 | 7.6 | 2.20 | 2.5 |
| M5 | 0.8 | 9.5 | 2.75 | 3.0 |
| M6 | 1.0 | 10.5 | 3.30 | 4.0 |
| M8 | 1.25 | 14.0 | 4.40 | 5.0 |
| M10 | 1.5 | 17.5 | 5.50 | 6.0 |
| M12 | 1.75 | 21.0 | 6.60 | 8.0 |
| M16 | 2.0 | 28.0 | 8.80 | 10.0 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 7380-1:2022
DIN EN ISO 7380-1:2023-04
ASME B18.3 — Inch Series
Small-diameter sizes, non-standard dimensions and custom configurations can be manufactured according to your requirements.
Diameter, length, head dimensions and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Custom screw lengths can be produced according to standard specifications or customer requirements.
Button head dimensions, hex socket sizes and other head features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium button head screws can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
