Home › Titanium Nuts › Titanium Flange Nuts

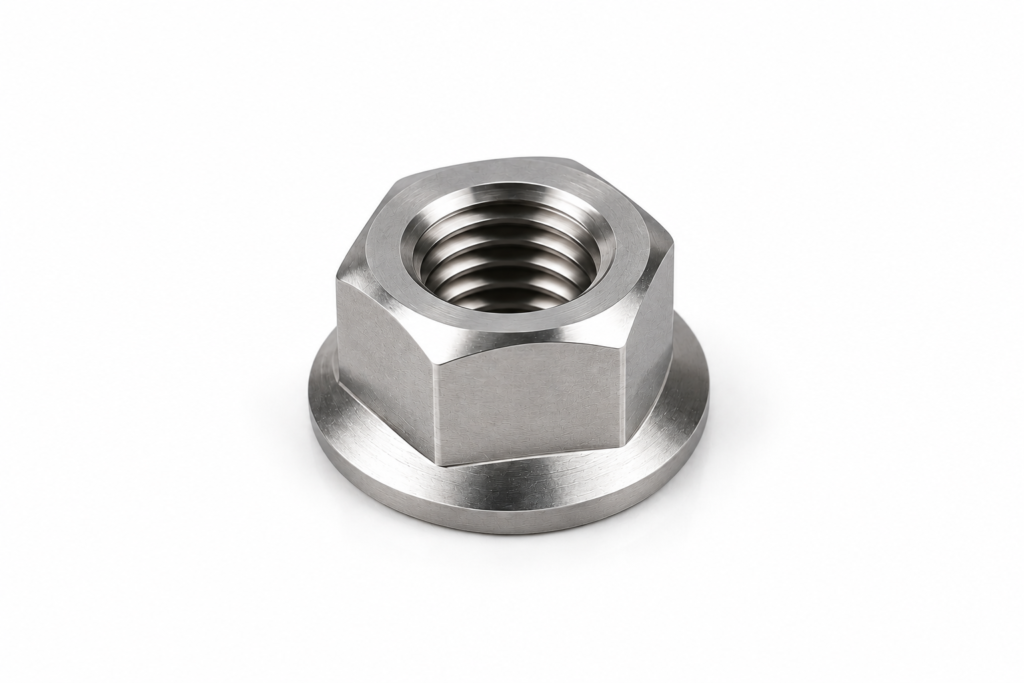

Titanium flange nuts feature an integrated flange that provides a wider bearing surface and helps distribute clamping load over a larger area. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium flange nuts feature an integrated flange that provides a wider bearing surface and helps distribute the clamping load over a larger area. This design can reduce the need for a separate washer in suitable applications. TitaniumWest supplies standard and custom titanium flange nuts in different grades, thread configurations and dimensions.
Standard products can be supplied according to applicable ISO, DIN and ASME specifications, while non-standard titanium flange nuts can be manufactured according to customer drawings, samples and technical requirements.

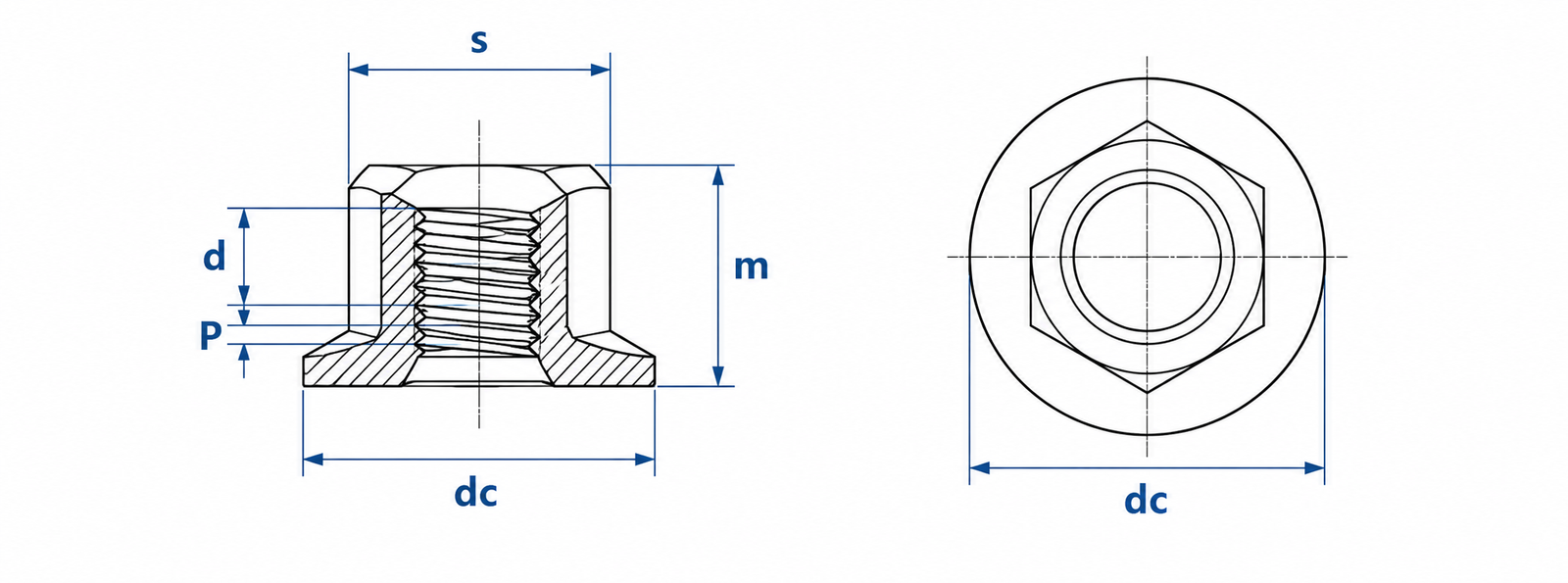

d — Nominal Thread Diameter · P — Thread Pitch · m — Nut Height · s — Width Across Flats · dc — Flange Diameter
| Size (d) | Pitch P | Nut Height m max. | Across Flats s max. | Flange Diameter dc max. |
|---|---|---|---|---|
| M5 | 0.8 | 5.00 | 8.00 | 11.8 |
| M6 | 1.0 | 6.00 | 10.00 | 14.2 |
| M8 | 1.25 | 8.00 | 13.00 | 17.9 |
| M10 | 1.5 | 10.00 | 15.00 | 21.8 |
| M12 | 1.75 | 12.00 | 18.00 | 26.0 |
| M14 | 2.0 | 14.00 | 21.00 | 29.9 |
| M16 | 2.0 | 16.00 | 24.00 | 34.5 |
| M20 | 2.5 | 20.00 | 30.00 | 42.8 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 4161:2012 — Metric Coarse Thread
ISO 10663:2012 — Metric Fine Thread
DIN EN 1661:1998-02 — Hexagon Nuts with Flange
ASME B18.2.2-2022 — Inch Series
Non-standard sizes, flange dimensions, thread configurations and custom designs can be manufactured according to your requirements.
Thread diameter, nut height, flange diameter and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Standard and non-standard nut sizes can be supplied according to your application requirements.
Flange diameter, thickness and other features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium flange nuts can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
