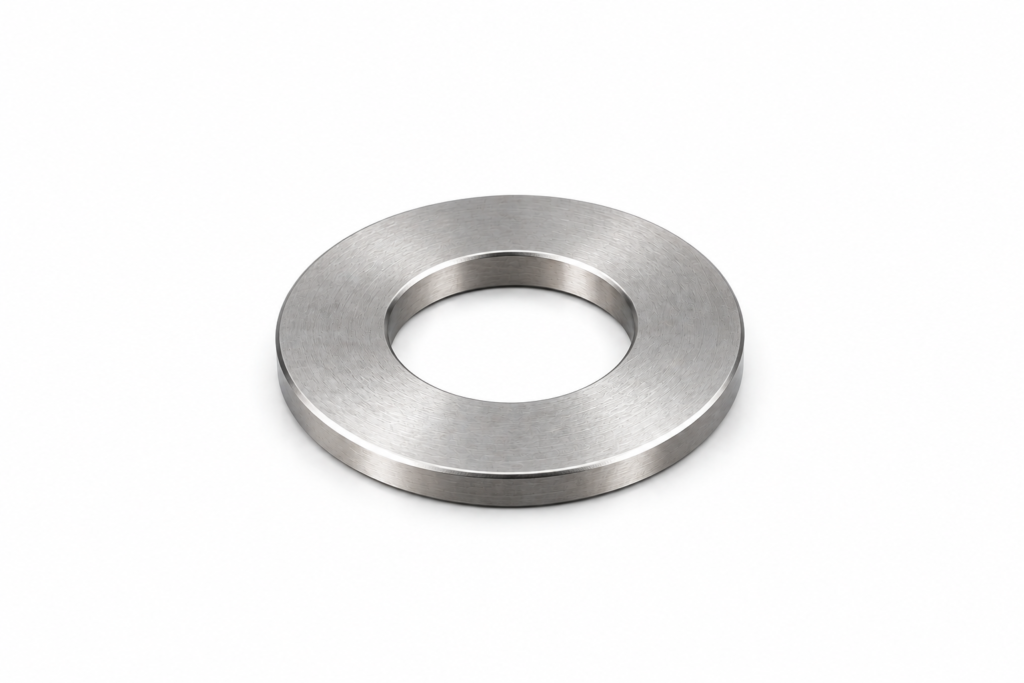

Titanium flat washers provide a flat bearing surface that helps distribute fastening load and protect the contact surface under bolt heads and nuts. Available in standard specifications and custom dimensions based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Size — Metric / Inch
Supply — Standard & Custom
Titanium flat washers are widely used under bolt heads and nuts to provide a flat bearing surface, distribute fastening load and help protect the contact surface. TitaniumWest supplies standard and custom titanium flat washers in different grades, sizes and dimensions.
Standard products can be supplied according to applicable ISO, DIN and other relevant specifications, while non-standard titanium flat washers can be manufactured according to customer drawings, samples and technical requirements.
d1 — Inside Diameter · d2 — Outside Diameter · h — Washer Thickness
| Nominal Size | d1 min. (mm) | d1 max. (mm) | d2 min. (mm) | d2 max. (mm) | h min. (mm) | h max. (mm) |
|---|---|---|---|---|---|---|
| M3 | 3.2 | 3.38 | 6.64 | 7.0 | 0.45 | 0.55 |
| M4 | 4.3 | 4.48 | 8.64 | 9.0 | 0.70 | 0.90 |
| M5 | 5.3 | 5.48 | 9.64 | 10.0 | 0.90 | 1.10 |
| M6 | 6.4 | 6.62 | 11.57 | 12.0 | 1.40 | 1.80 |
| M8 | 8.4 | 8.62 | 15.57 | 16.0 | 1.40 | 1.80 |
| M10 | 10.5 | 10.77 | 19.48 | 20.0 | 1.80 | 2.20 |
| M12 | 13.0 | 13.27 | 23.48 | 24.0 | 2.30 | 2.70 |
| M14 | 15.0 | 15.27 | 27.48 | 28.0 | 2.30 | 2.70 |
| M16 | 17.0 | 17.27 | 29.48 | 30.0 | 2.70 | 3.30 |
| M20 | 21.0 | 21.33 | 36.38 | 37.0 | 2.70 | 3.30 |
| M24 | 25.0 | 25.33 | 43.38 | 44.0 | 3.70 | 4.30 |
| M30 | 31.0 | 31.39 | 55.26 | 56.0 | 3.70 | 4.30 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric
Inch
ISO 7089:2000 — Normal Series, Product Grade A
DIN EN ISO 7089:2000-11 — Normal Series, Product Grade A
ASME B18.21.1-2009 (R2016) — Plain Washers, Inch Series
Non-standard sizes, thicknesses and custom dimensions can be manufactured according to your requirements.
Inside diameter, outside diameter, thickness and other dimensions can be manufactured according to your requirements.
Metric, inch and non-standard washer sizes are available according to your application requirements.
Standard and non-standard washer thicknesses can be supplied according to your requirements.
Inside diameter, outside diameter and other dimensional features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium flat washers can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
