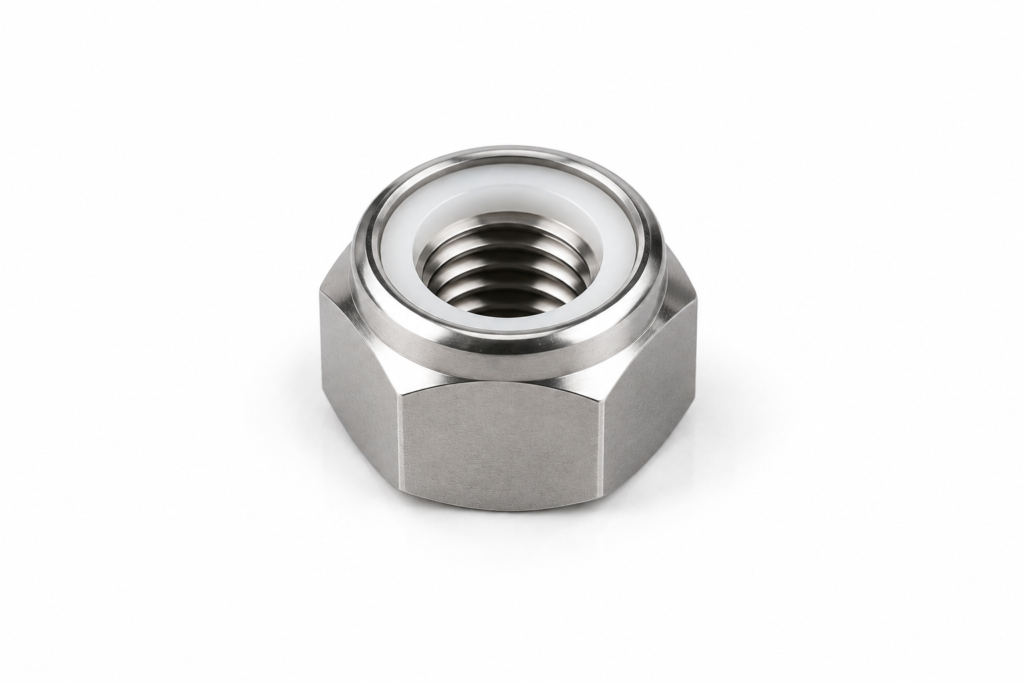

Titanium nyloc nuts feature a non-metallic locking insert that creates prevailing torque on the mating thread, helping resist loosening caused by vibration and movement. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium nyloc nuts are prevailing torque lock nuts that use a non-metallic insert to create resistance against the mating thread, helping reduce loosening caused by vibration and movement. TitaniumWest supplies standard and custom titanium nyloc nuts in different grades, thread configurations and dimensions.
Standard products can be supplied according to applicable ISO, DIN and ASME specifications, while non-standard titanium nyloc nuts can be manufactured according to customer drawings, samples and technical requirements.

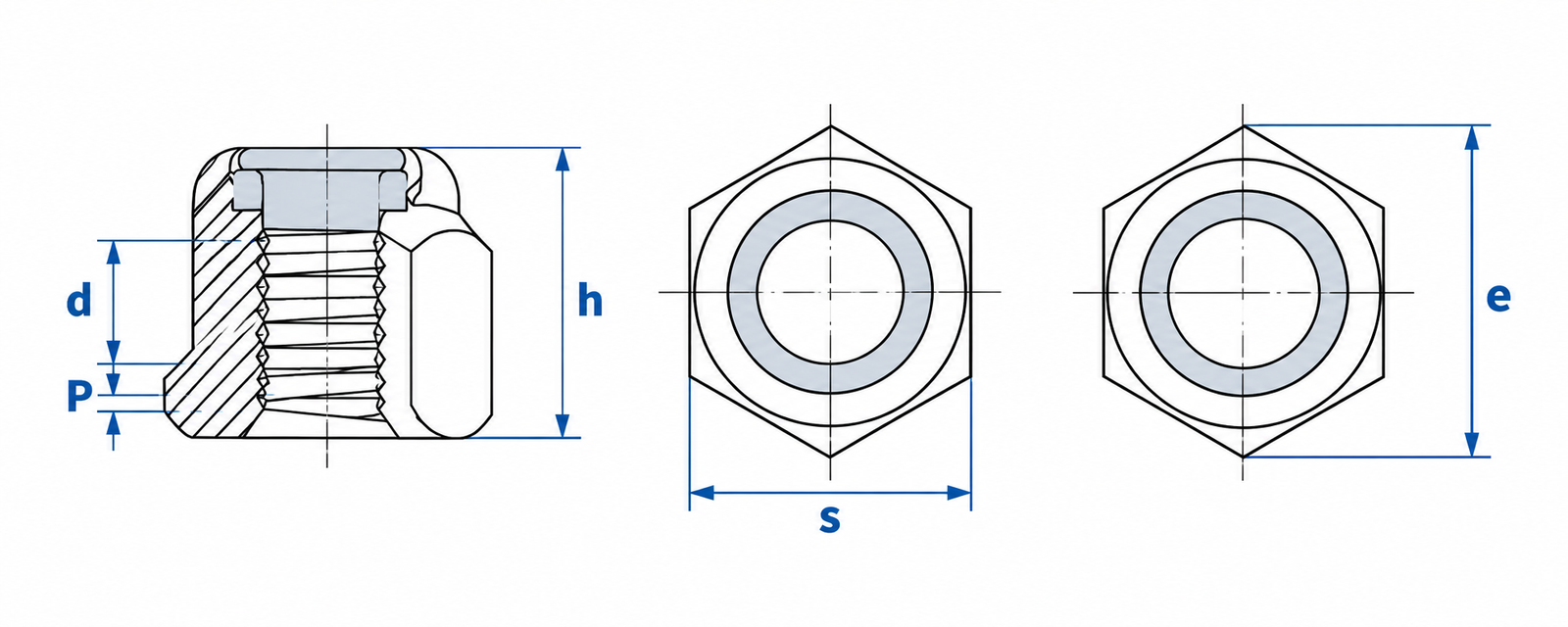

d — Nominal Thread Diameter · P — Thread Pitch · h — Nut Height · s — Width Across Flats · e — Width Across Corners
| Size (d) | Pitch P (mm) | Nut Height h max. (mm) | Across Flats s max. (mm) | Across Corners e min. (mm) |
|---|---|---|---|---|
| M3 | 0.5 | 4.80 | 5.50 | 6.01 |
| M4 | 0.7 | 6.50 | 7.00 | 7.66 |
| M5 | 0.8 | 6.95 | 8.00 | 8.79 |
| M6 | 1.0 | 8.00 | 10.00 | 11.05 |
| M8 | 1.25 | 9.50 | 13.00 | 14.38 |
| M10 | 1.5 | 11.90 | 16.00 | 17.77 |
| M12 | 1.75 | 14.90 | 18.00 | 20.03 |
| M14* | 2.0 | 17.00 | 21.00 | 23.36 |
| M16 | 2.0 | 19.10 | 24.00 | 26.75 |
| M20 | 2.5 | 23.00 | 30.00 | 32.95 |
| M24 | 3.0 | 27.10 | 36.00 | 39.55 |
| M30 | 3.5 | 32.60 | 46.00 | 50.85 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 7040:2025 — Metric Coarse Thread
ISO 10512:2025 — Metric Fine Thread
DIN EN ISO 7040:2025-09 — Metric Coarse Thread
ASME B18.16.6-2017 (R2022) — Inch Series
Non-standard sizes, thread configurations and custom dimensions can be manufactured according to your requirements.
Thread diameter, nut height, width across flats and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Standard and non-standard nut sizes can be supplied according to your application requirements.
Nut dimensions and other features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium nyloc nuts can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
