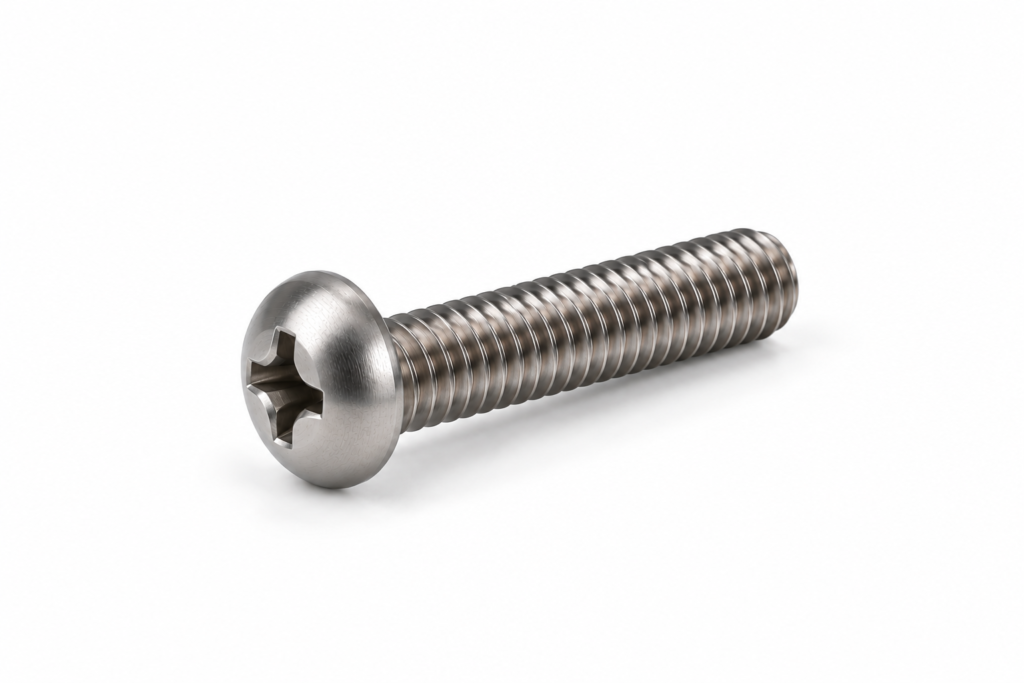

Titanium pan head screws feature a low-profile rounded head with a broad bearing surface, providing a practical fastening solution for general industrial and custom applications. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium pan head screws are widely used where a low-profile rounded head, broad bearing surface and convenient drive installation are required. The pan head provides a larger contact area than many smaller head styles while maintaining a relatively low profile. TitaniumWest supplies standard and custom titanium pan head screws in different grades, thread configurations, drive styles and dimensions.
Standard products can be supplied according to applicable ISO, DIN and ASME specifications, while non-standard titanium pan head screws can be manufactured according to customer drawings, samples and technical requirements.

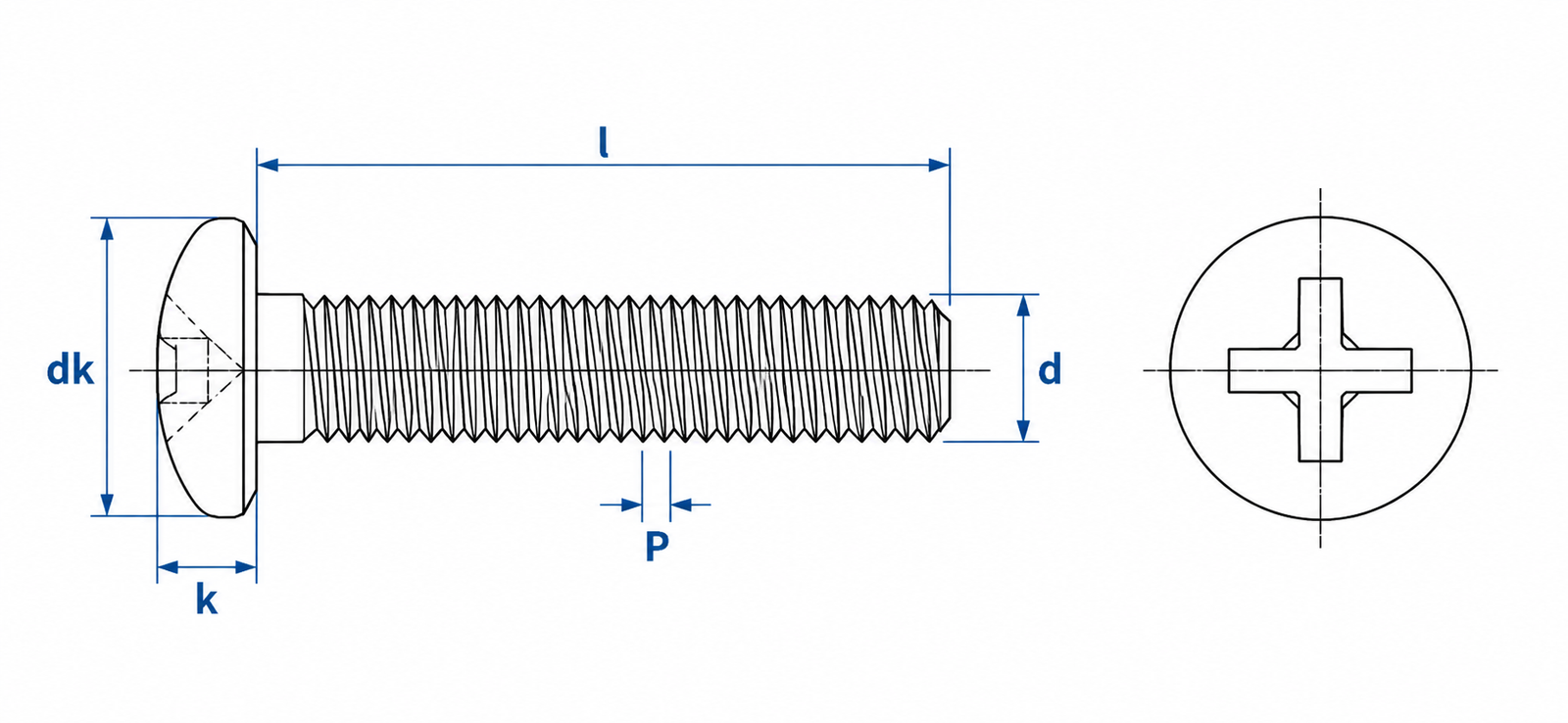

d — Nominal Thread Diameter · P — Thread Pitch · dk — Head Diameter · k — Head Height · l — Nominal Screw Length
| Size (d) | Pitch P (mm) | Head Diameter dk nominal (mm) | Head Height k nominal (mm) |
|---|---|---|---|
| M2 | 0.4 | 4.0 | 1.6 |
| M2.5 | 0.45 | 5.0 | 2.0 |
| M3 | 0.5 | 6.0 | 2.4 |
| M4 | 0.7 | 8.0 | 3.1 |
| M5 | 0.8 | 10.0 | 3.8 |
| M6 | 1.0 | 12.0 | 4.6 |
| M8 | 1.25 | 16.0 | 6.0 |
| M10 | 1.5 | 20.0 | 7.5 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 7045:2011
DIN EN ISO 7045:2011-12
ASME B18.6.3-2024 — Inch Series
Small-diameter sizes, non-standard dimensions and custom configurations can be manufactured according to your requirements.
Diameter, length, head dimensions and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Custom screw lengths can be produced according to standard specifications or customer requirements.
Pan head dimensions, drive styles and other head features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium pan head screws can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
Request a Quote
