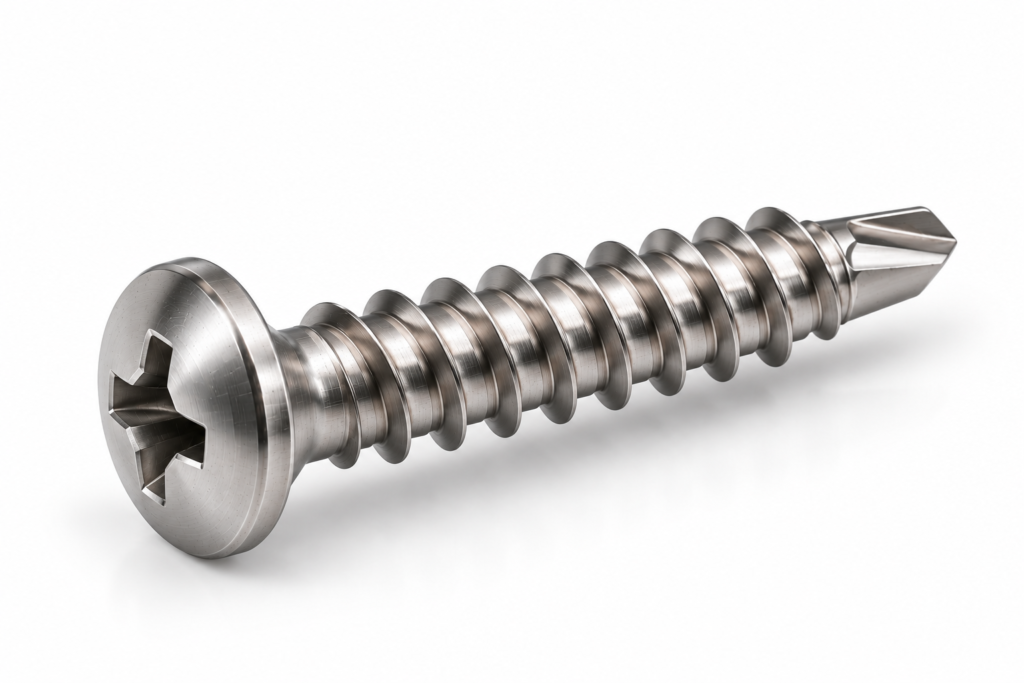

Titanium self-tapping screws are designed to form or cut mating threads during installation, providing a practical fastening solution without requiring a pre-tapped internal thread. Available in different head styles, drive configurations and custom dimensions based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Self-Tapping Thread
Supply — Standard & Custom
Titanium self-tapping screws are commonly used where threads need to be formed or cut during installation without a pre-tapped internal thread. Different head styles, drive configurations and thread forms can be selected according to the fastening material and application requirements. TitaniumWest supplies standard and custom titanium self-tapping screws in different grades, dimensions and configurations.
Standard products can be supplied according to applicable ISO, DIN and ASME specifications, while non-standard titanium self-tapping screws can be manufactured according to customer drawings, samples and technical requirements.

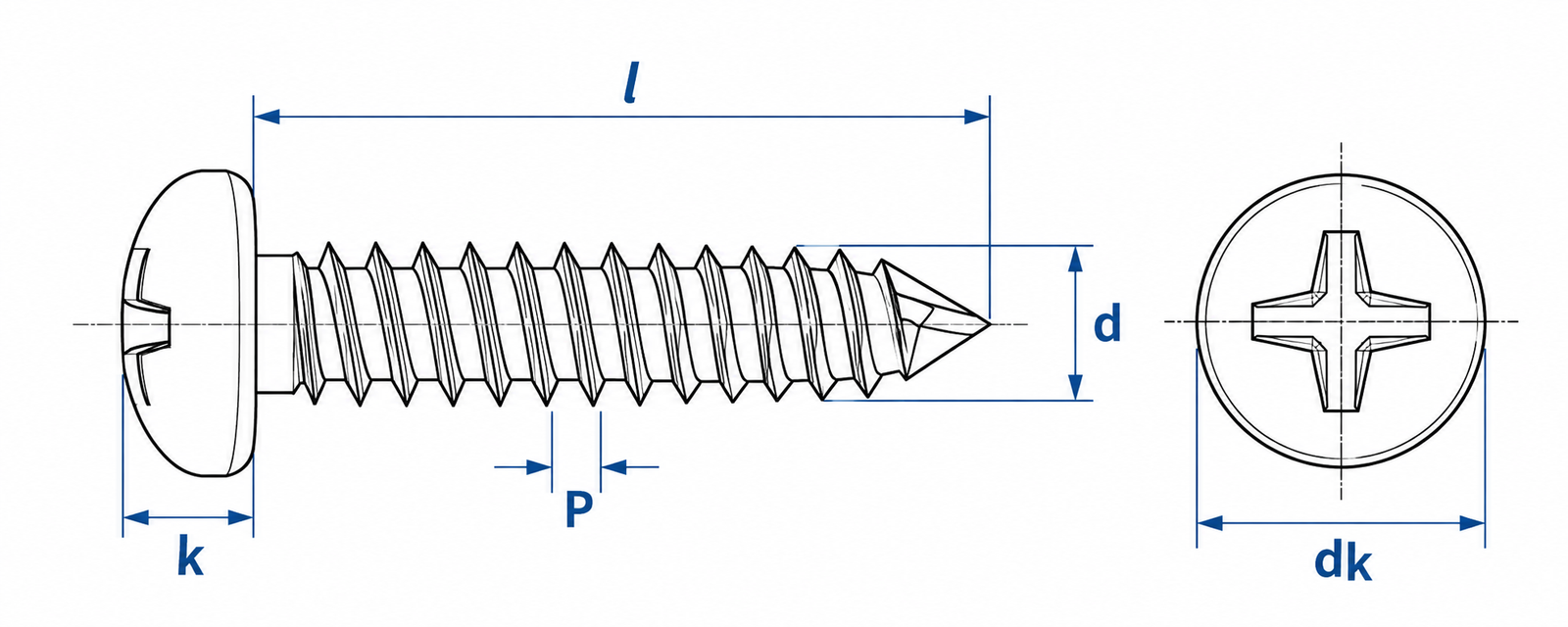

d — Nominal Thread Diameter · P — Thread Pitch · dk — Head Diameter · k — Head Height · l — Nominal Screw Length
| Size (d) | Pitch P (mm) | Head Diameter dk max (mm) | Head Height k max (mm) |
|---|---|---|---|
| ST2.2 | 0.8 | 4.0 | 1.6 |
| ST2.9 | 1.1 | 5.6 | 2.4 |
| ST3.5 | 1.3 | 7.0 | 2.6 |
| ST4.2 | 1.4 | 8.0 | 3.1 |
| ST4.8 | 1.6 | 9.5 | 3.7 |
| ST5.5 | 1.8 | 11.0 | 4.0 |
| ST6.3 | 1.8 | 12.0 | 4.6 |
| ST8 | 2.1 | 16.0 | 6.0 |
| ST9.5 | 2.1 | 20.0 | 7.5 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Self-Tapping Thread
Custom Thread Forms
ISO 7049:2011 — Cross-Recessed Pan Head
DIN EN ISO 7049:2011-11 — Cross-Recessed Pan Head
ASME B18.6.3-2024 — Inch Series
Non-standard dimensions, head styles, drive configurations and custom self-tapping screw designs can be manufactured according to your requirements.
Diameter, length, head dimensions and other dimensions can be manufactured according to your requirements.
Self-tapping thread dimensions and custom thread forms can be manufactured according to your application requirements.
Custom screw lengths can be produced according to standard specifications or customer requirements.
Pan head, countersunk and other head styles with different drive configurations can be supplied according to your requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium self-tapping screws can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
