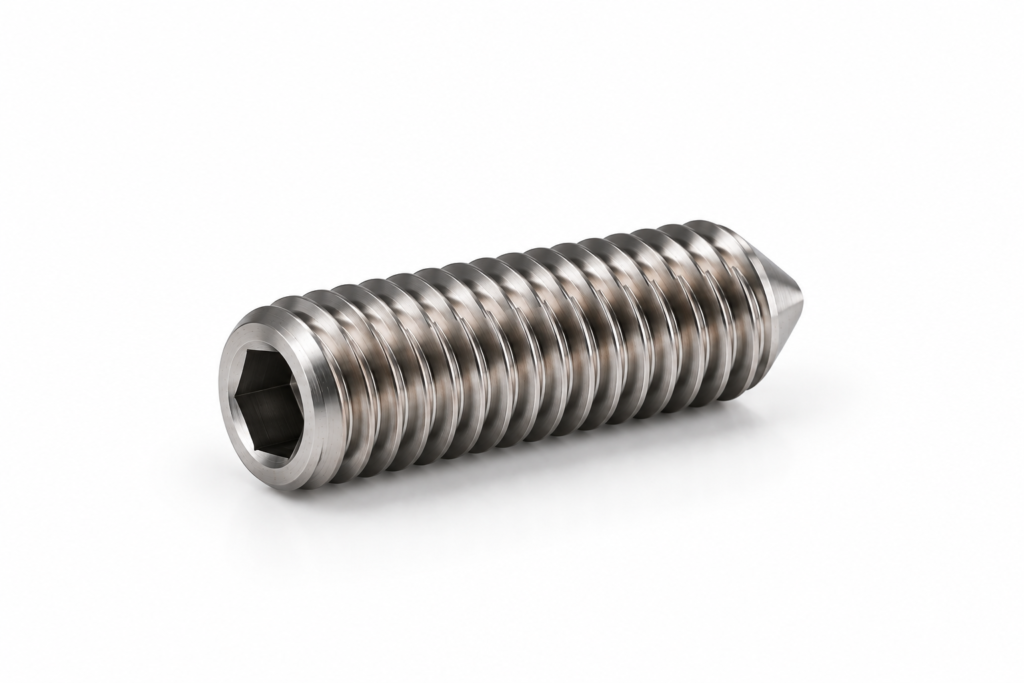

Titanium set screws are headless threaded fasteners designed to secure components in position without a protruding screw head. Available in different point styles, thread configurations and custom dimensions based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium set screws are headless threaded fasteners commonly used to secure components such as collars, gears and pulleys to shafts without requiring a protruding screw head. Different point styles can be selected according to the contact surface and fastening requirements. TitaniumWest supplies standard and custom titanium set screws in different grades, thread configurations, point styles and dimensions.
Standard products can be supplied according to applicable ISO, DIN and ASME specifications, while non-standard titanium set screws can be manufactured according to customer drawings, samples and technical requirements.

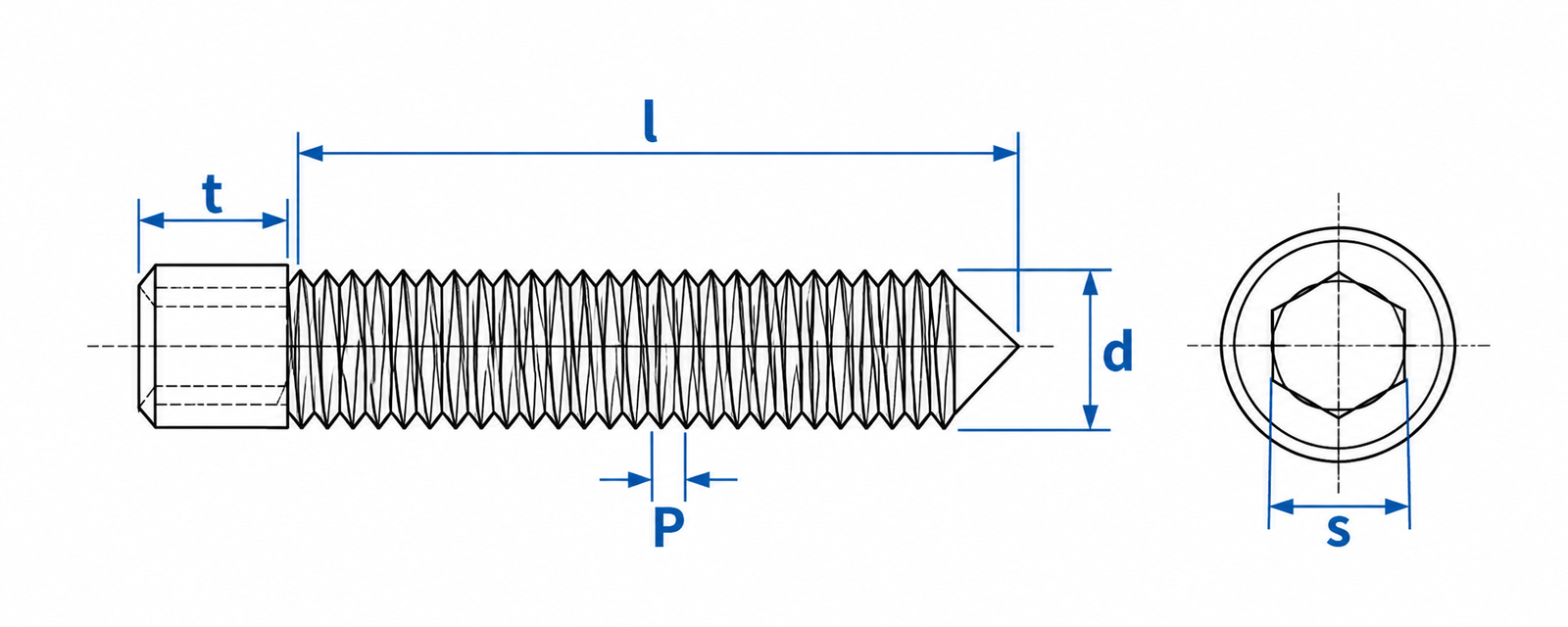

d — Nominal Thread Diameter · P — Thread Pitch · s — Hex Socket Size · t — Hex Socket Depth · l — Nominal Screw Length
| Size (d) | Pitch P (mm) | Hex Socket s nominal (mm) | L₀ nominal (mm) | t min. Short Screw (mm) | t min. Long Screw (mm) |
|---|---|---|---|---|---|
| M3 | 0.5 | 1.5 | 4 | 1.2 | 2.0 |
| M4 | 0.7 | 2.0 | 5 | 1.5 | 2.5 |
| M5 | 0.8 | 2.5 | 6 | 2.0 | 3.0 |
| M6 | 1.0 | 3.0 | 6 | 2.0 | 3.5 |
| M8 | 1.25 | 4.0 | 8 | 3.0 | 5.0 |
| M10 | 1.5 | 5.0 | 10 | 4.0 | 6.0 |
| M12 | 1.75 | 6.0 | 12 | 4.8 | 8.0 |
| M16 | 2.0 | 8.0 | 16 | 6.4 | 10.0 |
| For L ≤ L₀, use the short-screw t value; for L > L₀, use the long-screw t value. | |||||
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 4026:2026 — Flat Point
ISO 4027:2026 — Truncated Cone Point
ISO 4028:2026 — Dog Point
ISO 4029:2026 — Cup Point
ASME B18.3-2026 — Inch Series
Non-standard dimensions, point styles and custom configurations can be manufactured according to your requirements.
Diameter, length, socket dimensions and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Custom set screw lengths can be produced according to standard specifications or customer requirements.
Flat point, truncated cone point, dog point and cup point configurations are available according to application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium set screws can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
