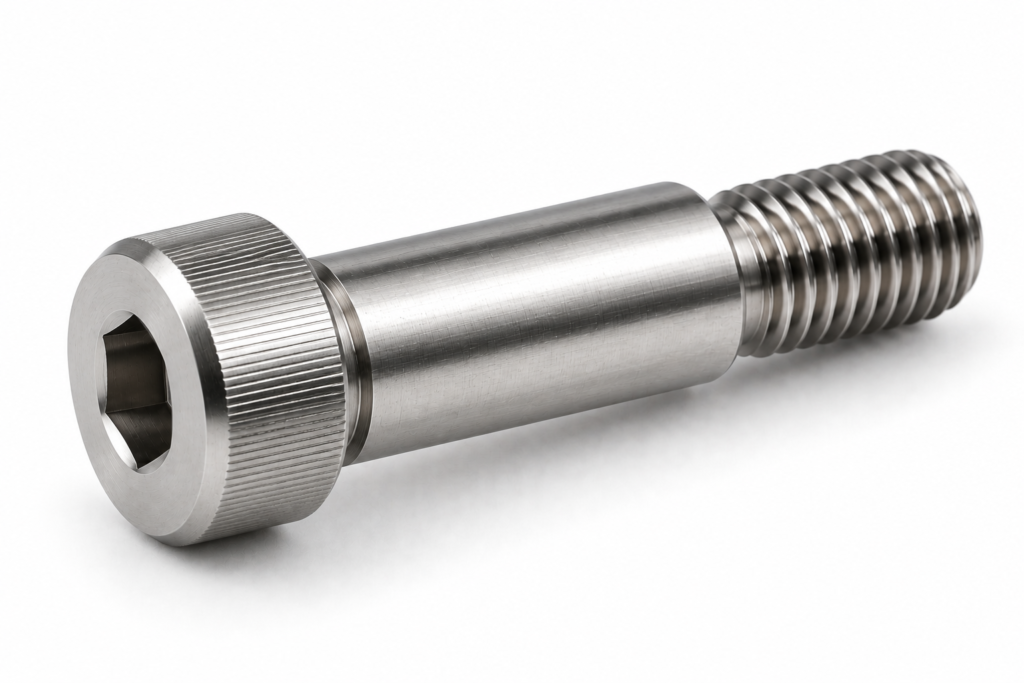

Titanium shoulder bolts feature a precision-machined unthreaded shoulder between the head and threaded section, providing a smooth bearing surface for components that rotate, slide or pivot. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium shoulder bolts are designed with a precision unthreaded shoulder between the head and threaded section, providing a smooth bearing surface for components that rotate, slide or pivot. TitaniumWest supplies standard and custom titanium shoulder bolts in different titanium grades, shoulder diameters, shoulder lengths and thread configurations.
Standard products can be supplied according to applicable specifications, while non-standard titanium shoulder bolts can be manufactured according to customer drawings, samples and technical requirements.

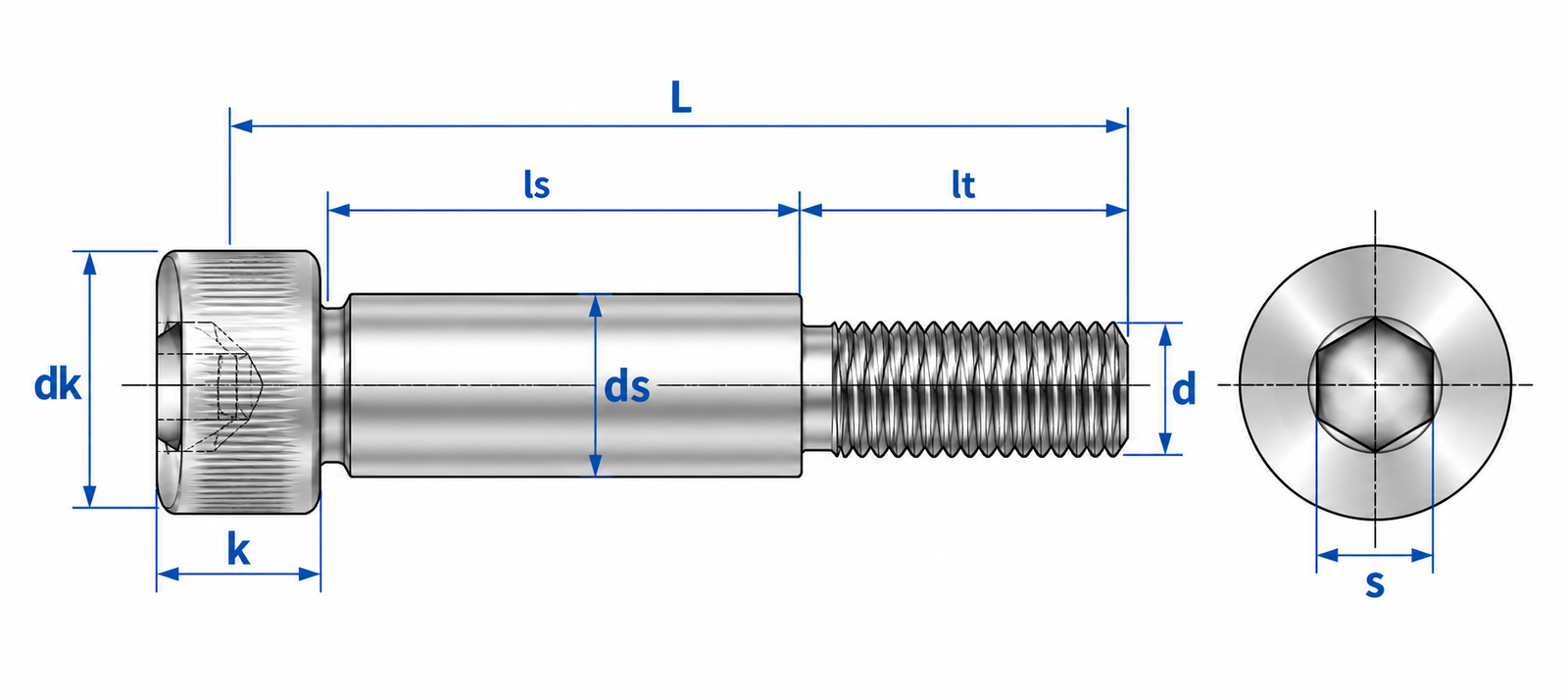

d — Nominal Thread Diameter · ds — Shoulder Diameter · ls — Shoulder Length · lt — Thread Length · dk — Head Diameter · k — Head Height · s — Hex Socket Size · L — Nominal Length
| Thread Size (d) | Pitch P (mm) | Shoulder Diameter ds (mm) | Head Diameter dk max (mm) | Head Height k max (mm) | Hex Socket s (mm) |
|---|---|---|---|---|---|
| M5 | 0.8 | 6.5 | 10 | 4.5 | 3 |
| M6 | 1.0 | 8 | 13 | 5.5 | 4 |
| M8 | 1.25 | 10 | 16 | 7 | 5 |
| M10 | 1.5 | 13 | 18 | 9 | 6 |
| M12 | 1.75 | 16 | 24 | 11 | 8 |
| M16 | 2.0 | 20 | 30 | 14 | 10 |
| M20 | 2.5 | 25 | 36 | 16 | 12 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 7379:1983 — Hexagon Socket Head Shoulder Screws
Custom titanium shoulder bolts can be manufactured in different shoulder diameters, shoulder lengths, thread configurations, head dimensions and other specifications according to your drawings or technical requirements.
Shoulder diameter, shoulder length and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Shoulder lengths can be produced according to standard specifications or customer requirements.
Head dimensions and hex socket specifications can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium shoulder bolts can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
Request a Quote
