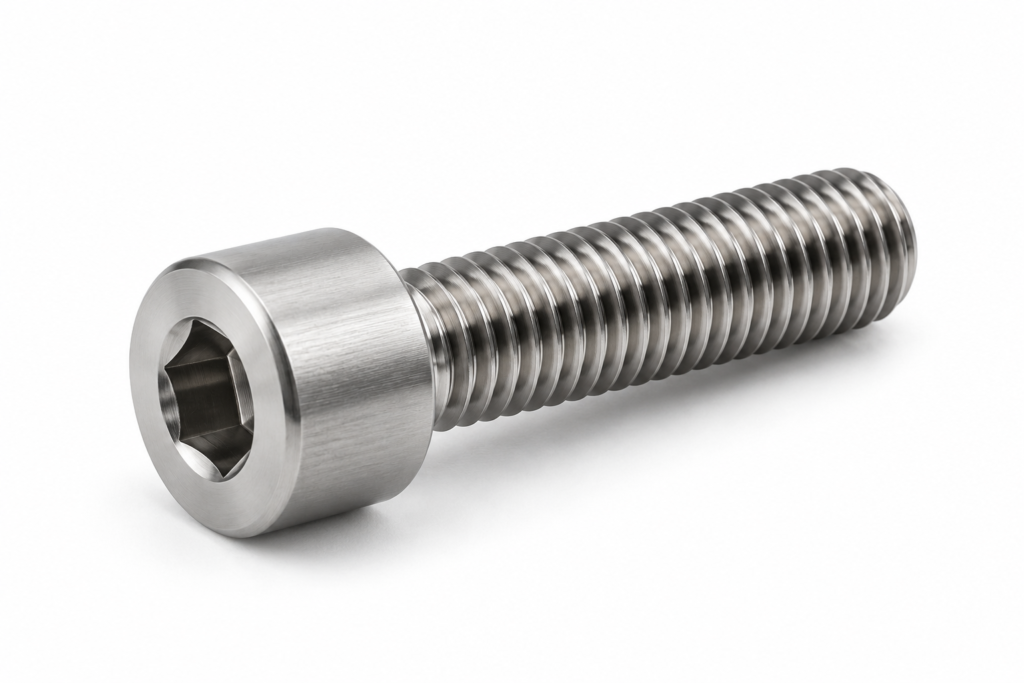

Titanium socket head cap bolts provide a strong, compact fastening solution for industrial and custom applications. The internal hex drive allows installation in applications where space around the bolt head is limited. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium socket head cap bolts are widely used where high-strength fastening, compact head dimensions and internal hex drive installation are required. TitaniumWest supplies standard and custom titanium socket head cap bolts in different grades, thread configurations and dimensions.
Standard products can be supplied according to applicable DIN, ISO and ASME specifications, while non-standard titanium socket head cap bolts can be manufactured according to customer drawings, samples and technical requirements.

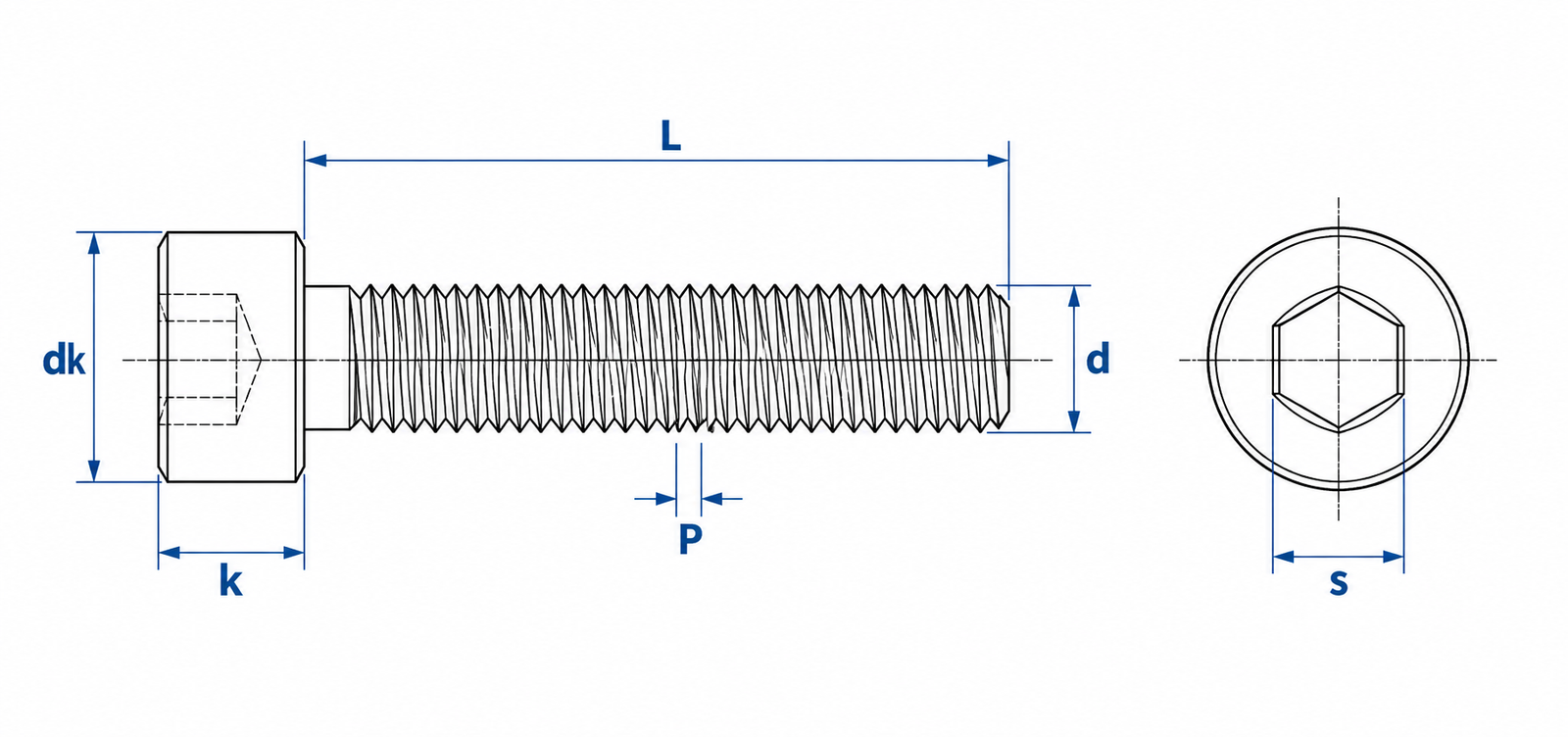

d — Nominal Thread Diameter · P — Thread Pitch · k — Head Height · dk — Head Diameter · s — Hex Socket Size · L — Bolt Length
| Size (d) | Pitch P (mm) | Head Diameter dk (mm) | Head Height k (mm) | Hex Socket s (mm) |
|---|---|---|---|---|
| M3 | 0.5 | 5.5 | 3.0 | 2.5 |
| M4 | 0.7 | 7.0 | 4.0 | 3.0 |
| M5 | 0.8 | 8.5 | 5.0 | 4.0 |
| M6 | 1.0 | 10.0 | 6.0 | 5.0 |
| M8 | 1.25 | 13.0 | 8.0 | 6.0 |
| M10 | 1.5 | 16.0 | 10.0 | 8.0 |
| M12 | 1.75 | 18.0 | 12.0 | 10.0 |
| M16 | 2.0 | 24.0 | 16.0 | 14.0 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 4762 — Socket Head Cap Screws
DIN 912 — Socket Head Cap Screws
ASME B18.3 — Socket Head Cap Screws
Custom titanium socket head cap bolts can be manufactured in different dimensions, thread configurations, lengths and head specifications according to your drawings or technical requirements.
Diameter, length and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Bolt lengths can be produced according to standard specifications or customer requirements.
Head dimensions and special features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium socket head cap bolts can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
Request a Quote
