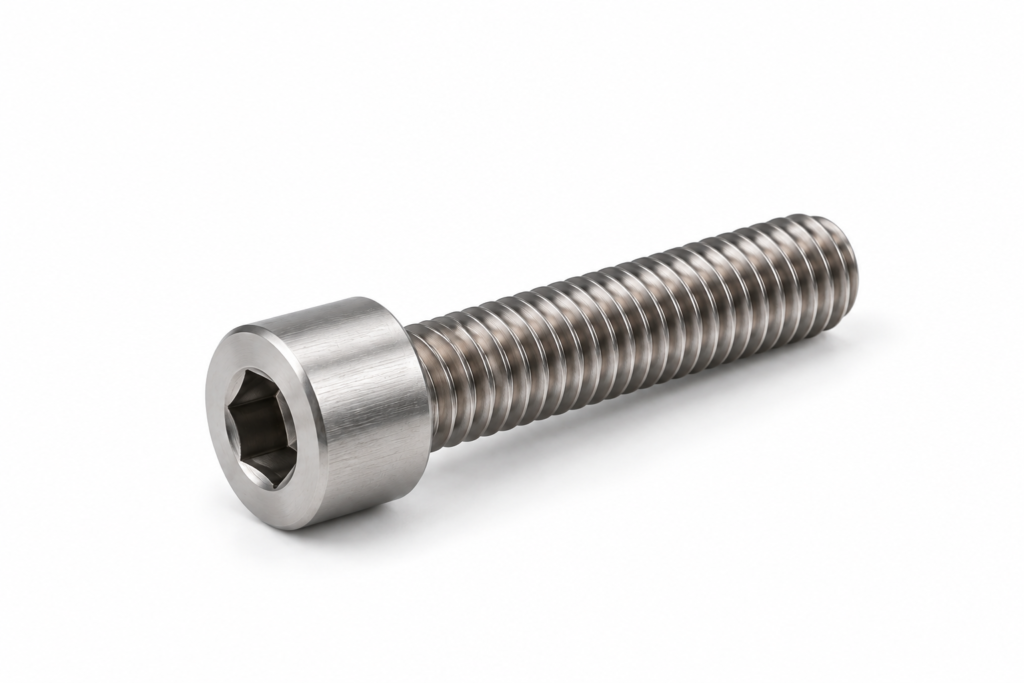

Titanium socket head cap screws feature a cylindrical head with an internal hex drive, providing a compact fastening solution for applications requiring reliable tightening and installation in limited spaces. Available in standard specifications and custom configurations based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Thread — Metric Coarse / Metric Fine / UNC / UNF
Supply — Standard & Custom
Titanium socket head cap screws are widely used where compact head dimensions, internal hex drive installation and reliable fastening performance are required. The cylindrical head and internal hex drive make them suitable for applications where access around the screw head is limited. TitaniumWest supplies standard and custom titanium socket head cap screws in different grades, thread configurations and dimensions.
Standard products can be supplied according to applicable ISO, DIN and ASME specifications, while non-standard titanium socket head cap screws can be manufactured according to customer drawings, samples and technical requirements.

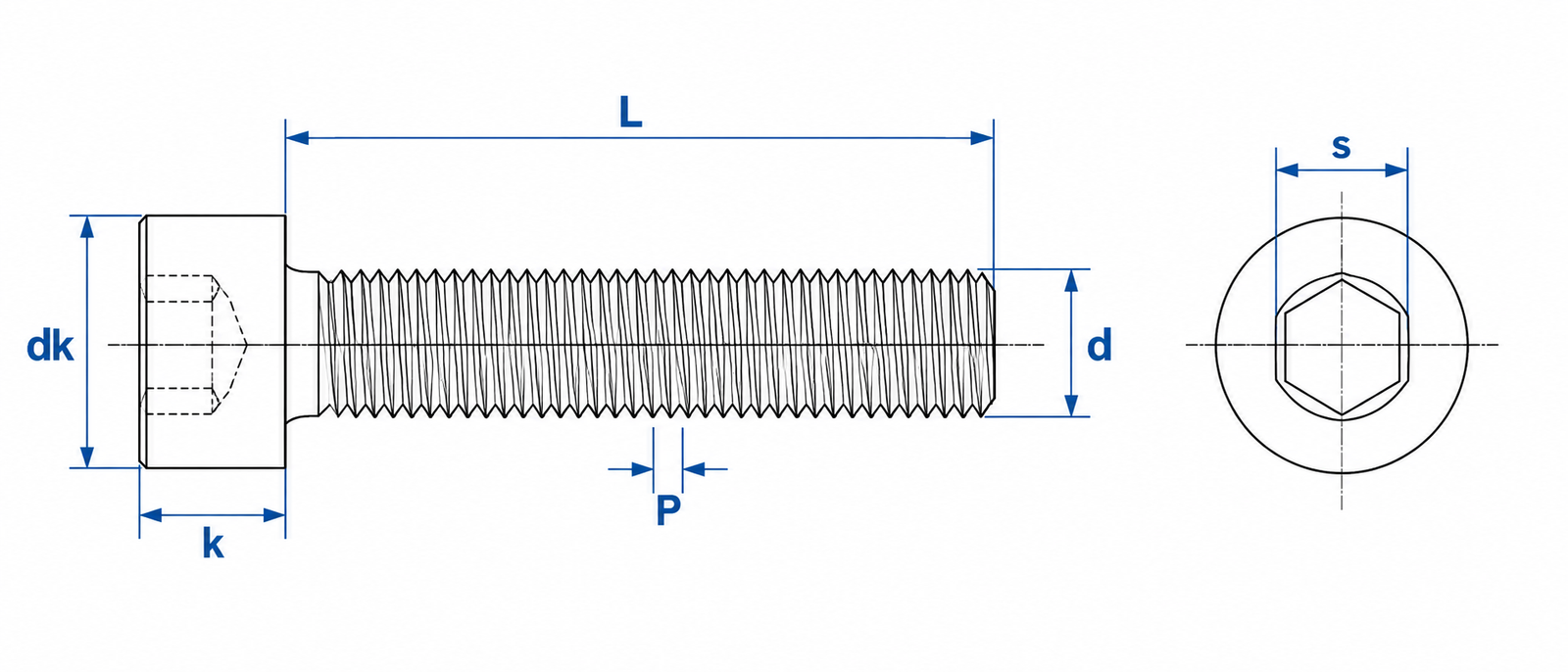

d — Nominal Thread Diameter · P — Thread Pitch · dk — Head Diameter · k — Head Height · s — Hex Socket Size · L — Screw Length
| Size (d) | Pitch P (mm) | Head Diameter dk max (mm) | Head Height k max (mm) | Hex Socket s (mm) |
|---|---|---|---|---|
| M3 | 0.5 | 5.5 | 3.0 | 2.5 |
| M4 | 0.7 | 7.0 | 4.0 | 3.0 |
| M5 | 0.8 | 8.5 | 5.0 | 4.0 |
| M6 | 1.0 | 10.0 | 6.0 | 5.0 |
| M8 | 1.25 | 13.0 | 8.0 | 6.0 |
| M10 | 1.5 | 16.0 | 10.0 | 8.0 |
| M12 | 1.75 | 18.0 | 12.0 | 10.0 |
| M16 | 2.0 | 24.0 | 16.0 | 14.0 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric Coarse
Metric Fine
UNC
UNF
ISO 4762:2004
DIN EN ISO 4762:2004-06
ASME B18.3 — Inch Series
Small-diameter sizes, non-standard dimensions and custom configurations can be manufactured according to your requirements.
Diameter, length, head dimensions and other dimensions can be manufactured according to your requirements.
Metric coarse, metric fine, UNC and UNF thread configurations are available.
Custom screw lengths can be produced according to standard specifications or customer requirements.
Socket head dimensions, hex socket sizes and other head features can be customized according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium socket head cap screws can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
