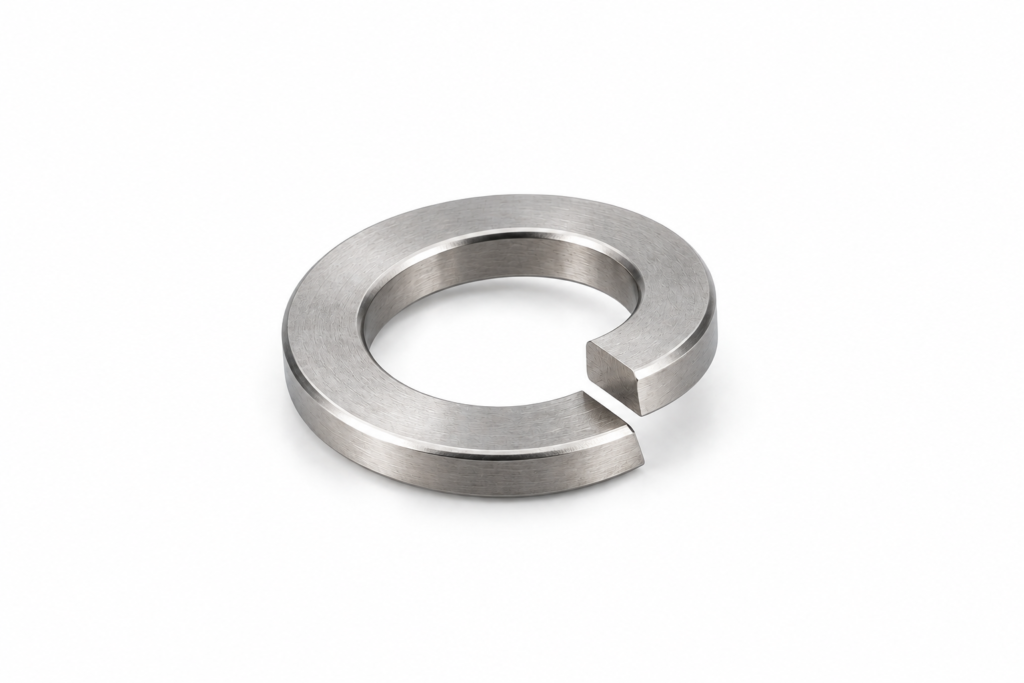

Titanium spring washers provide an elastic preload under bolt heads and nuts and are commonly used in fastening assemblies where spring action is required. Available in standard specifications and custom dimensions based on your requirements.
Material — Titanium
Grades — Grade 2 / Grade 5 (Ti-6Al-4V)
Size — Metric / Inch
Supply — Standard & Custom
Titanium spring washers are designed to provide spring action in bolted assemblies and help maintain fastening tension under changing loads or vibration. TitaniumWest supplies standard and custom titanium spring washers in different grades, sizes and dimensions.
Products can be supplied according to relevant dimensional specifications and customer requirements, while non-standard titanium spring washers can be manufactured according to customer drawings, samples and technical requirements.

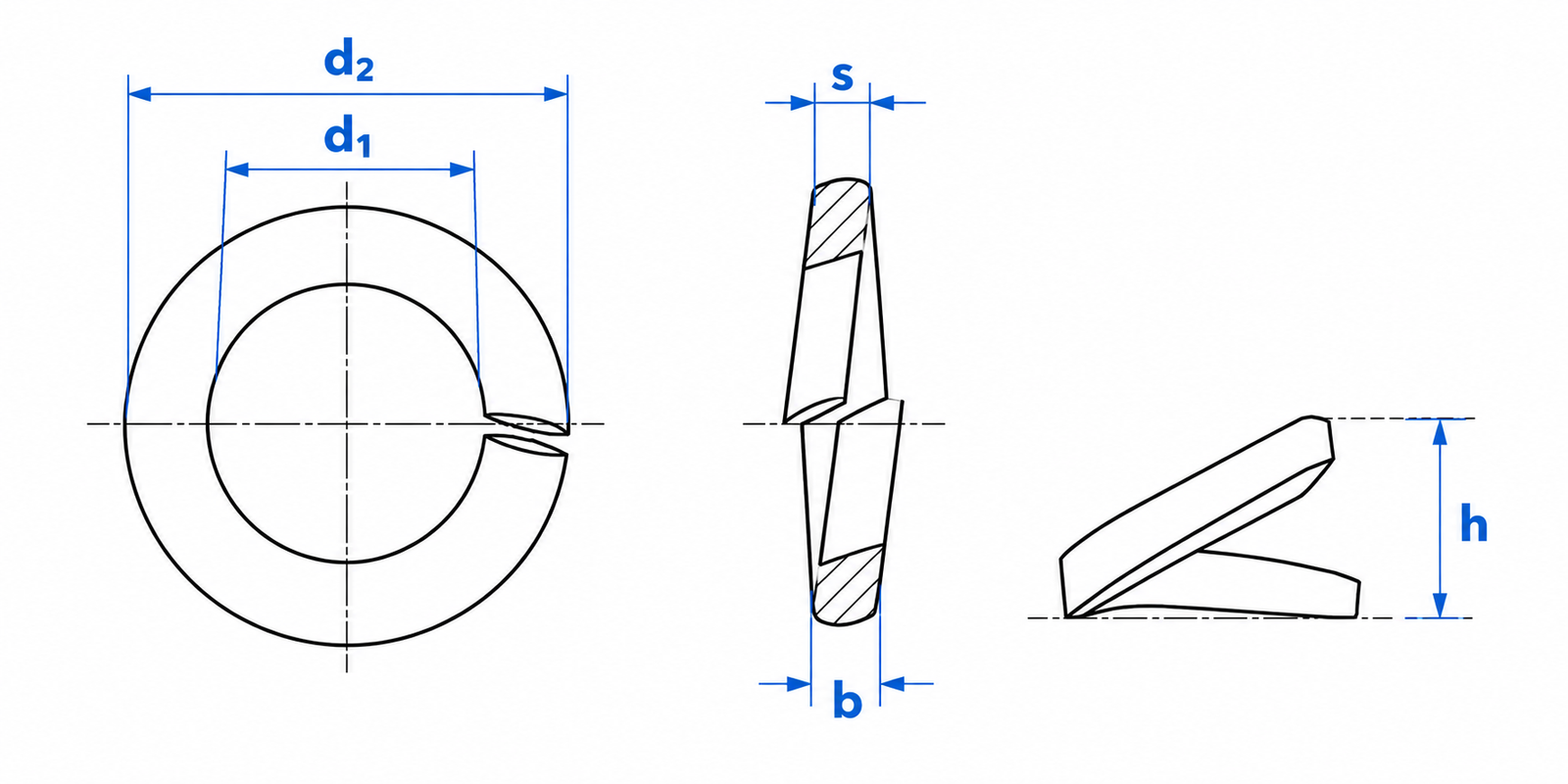

d1 — Inside Diameter · d2 — Outside Diameter · b — Section Width · s — Section Thickness · h — Free Height
| Nominal Size | d1 min. (mm) | d1 max. (mm) | d2 max. (mm) | b (mm) | s (mm) | h min. (mm) | h max. (mm) |
|---|---|---|---|---|---|---|---|
| M3 | 3.1 | 3.4 | 6.2 | 1.3 ± 0.1 | 0.8 ± 0.1 | 1.6 | 1.9 |
| M4 | 4.1 | 4.4 | 7.6 | 1.5 ± 0.1 | 0.9 ± 0.1 | 1.8 | 2.1 |
| M5 | 5.1 | 5.4 | 9.2 | 1.8 ± 0.1 | 1.2 ± 0.1 | 2.4 | 2.8 |
| M6 | 6.1 | 6.5 | 11.8 | 2.5 ± 0.15 | 1.6 ± 0.1 | 3.2 | 3.8 |
| M8 | 8.1 | 8.5 | 14.8 | 3.0 ± 0.15 | 2.0 ± 0.1 | 4.0 | 4.7 |
| M10 | 10.2 | 10.7 | 18.1 | 3.5 ± 0.15 | 2.2 ± 0.15 | 4.4 | 5.2 |
| M12 | 12.2 | 12.7 | 21.1 | 4.0 ± 0.15 | 2.5 ± 0.15 | 5.0 | 5.9 |
| M14 | 14.2 | 14.7 | 24.1 | 4.5 ± 0.15 | 3.0 ± 0.15 | 6.0 | 7.1 |
| M16 | 16.2 | 17.0 | 27.4 | 5.0 ± 0.2 | 3.5 ± 0.2 | 7.0 | 8.3 |
| M20 | 20.2 | 21.2 | 33.6 | 6.0 ± 0.2 | 4.0 ± 0.2 | 8.0 | 9.4 |
| M24 | 24.5 | 25.5 | 40.0 | 7.0 ± 0.25 | 5.0 ± 0.2 | 10.0 | 11.8 |
| M30 | 30.5 | 31.7 | 48.2 | 8.0 ± 0.25 | 6.0 ± 0.2 | 12.0 | 14.2 |
Dimensional requirements may vary according to the applicable standard, specification or custom drawing.
Grade 2
Grade 5 (Ti-6Al-4V)
Metric
Inch
DIN 127 B — Spring Lock Washers, Form B (Legacy / Reference)
ASME B18.21.1-2009 (R2016) — Helical Spring-Lock Washers, Inch Series
Non-standard sizes, section dimensions and custom configurations can be manufactured according to your requirements.
Inside diameter, outside diameter and other dimensions can be manufactured according to your requirements.
Metric, inch and non-standard washer sizes are available according to your application requirements.
Section width and thickness can be customized according to your dimensional and application requirements.
Non-standard spring washer dimensions and configurations can be manufactured according to drawings or application requirements.
Natural, polished and anodized finishes are available according to appearance and application requirements.
Non-standard titanium spring washers can be manufactured according to customer drawings, samples and technical specifications.
Material Traceability
Dimensional Inspection
Material Certificates Available
Inspection Records Available
Send us your required size, titanium grade, quantity or drawing for review.
